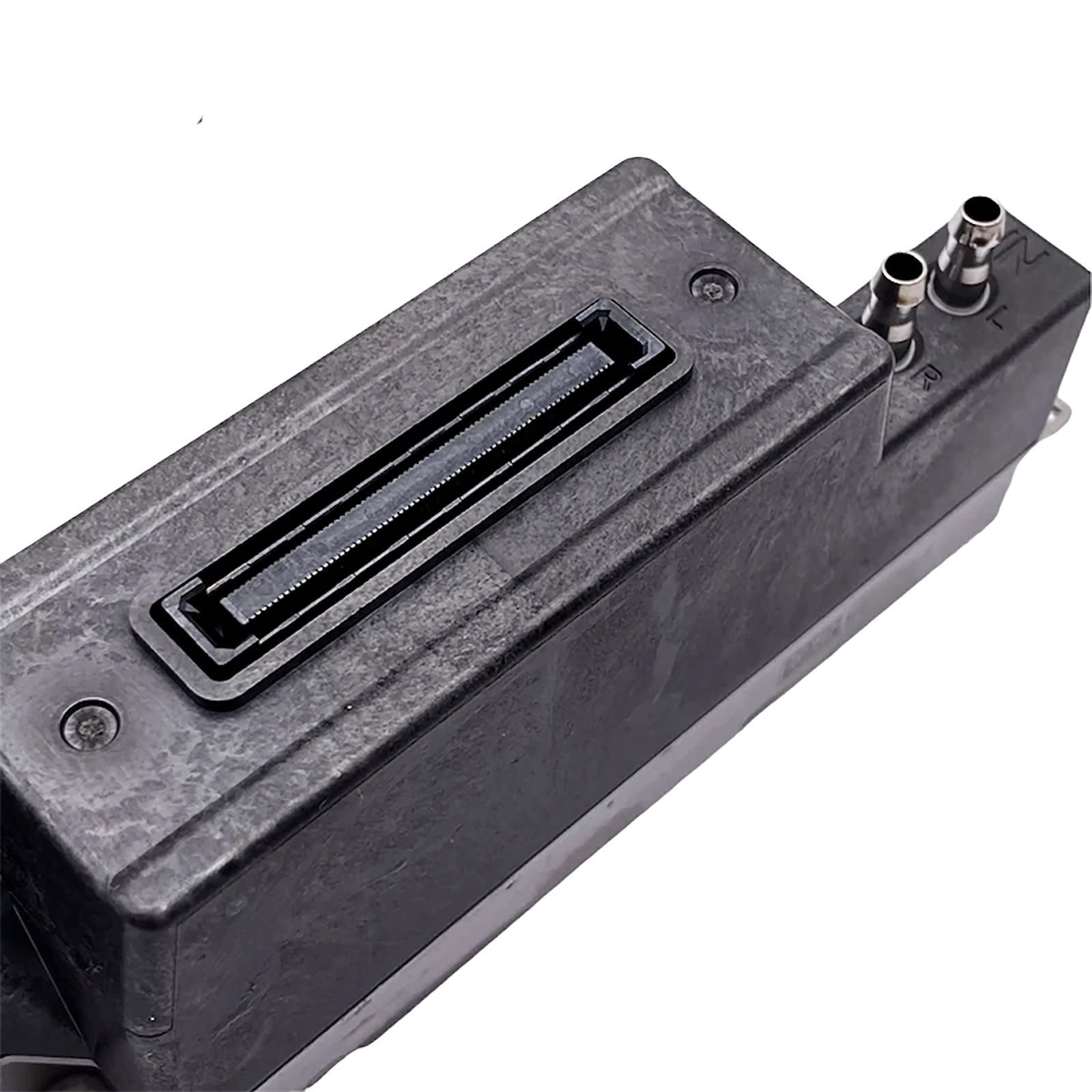

Epson S3200-U3 UV Printhead
Description:
S3200-U3 Print Head provides high productivity, high image quality, and head expandability. With a maximum of 4.73-inch-wide MEMs, this head series is equipped with an ink circulation mechanism. It is suitable for Aqueous ink.
All MEMS manufacturing and thin film piezo element can realize high precision and high density (600npi/2 rows of nozzles).
Description:
S3200-U3 Print Head provides high productivity, high image quality, and head expandability. With a maximum of 4.73-inch-wide MEMs, this head series is equipped with an ink circulation mechanism. It is suitable for Aqueous ink.
All MEMS manufacturing and thin film piezo element can realize high precision and high density (600npi/2 rows of nozzles).
Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently.
Specifications:
Product name: S3200-U3
Ink type: UV / Eco Solvent
Type: PrecisionCore MicroTFP printhead

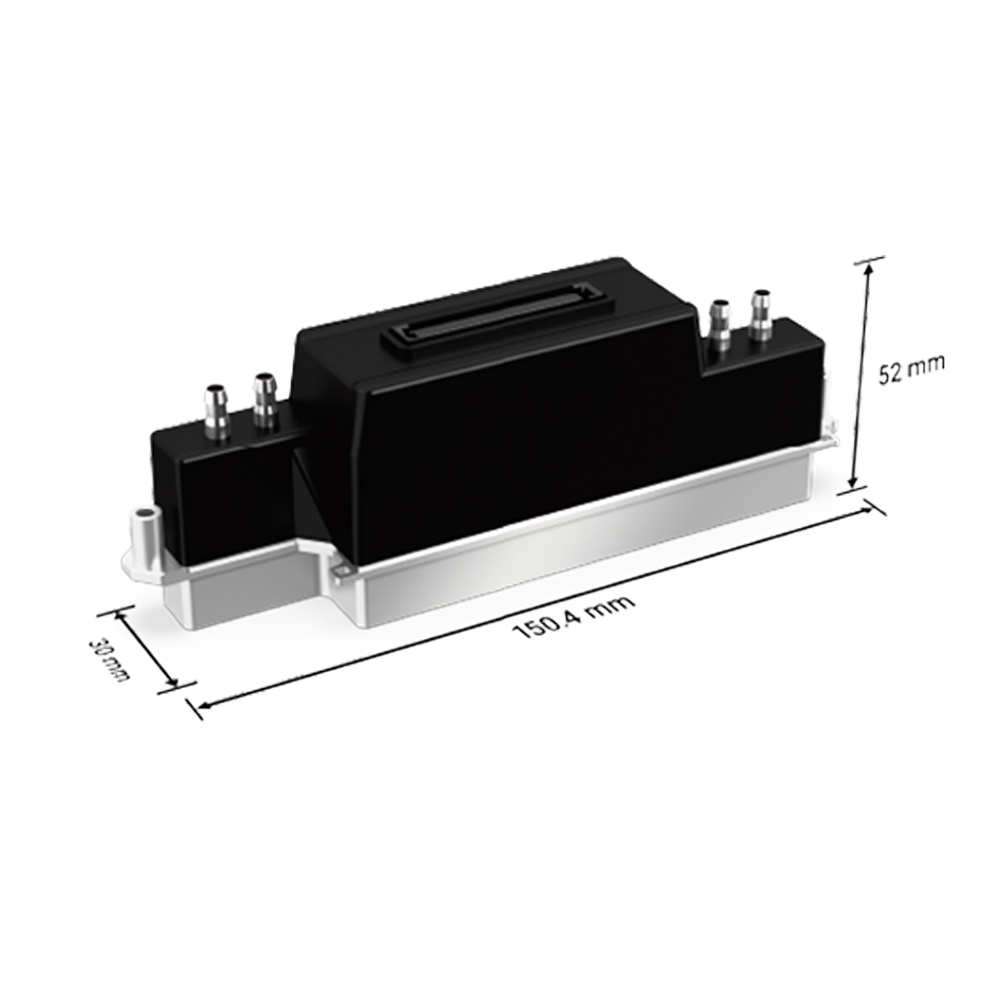

Width x Depth x Height: 150.4 x 30 x 52mm
Weight: 235g
Number of nozzle: 3200 (Net: 2840)

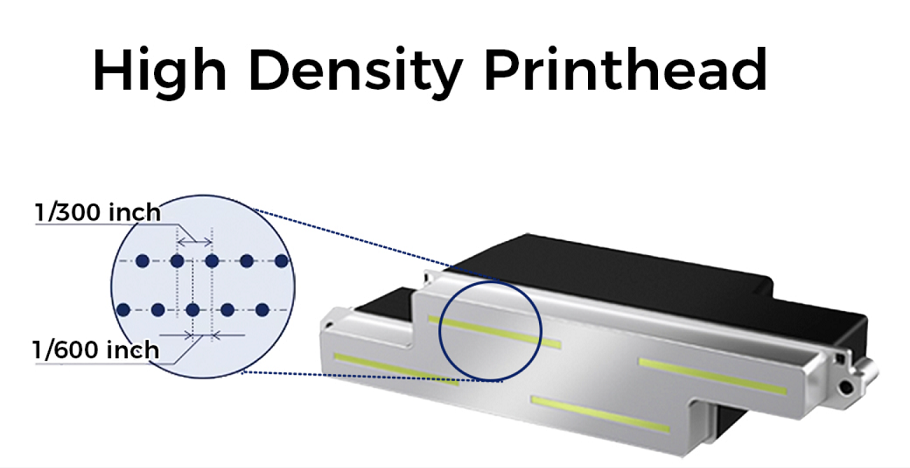

Nozzle pitch / nozzle row: 1/300 inch
Nozzle rows: 2 rows
Nozzle Resolution: 300 npi/row 600 npi/2 rows
Max. number of colour inks: 2 colours
Effective print width: 120.2 mm (4.73 inches)
Droplet volumes: 4.8, 9, 15 pl
Viscosity range: 8-9 mPa･s
Manufacture: Epson
