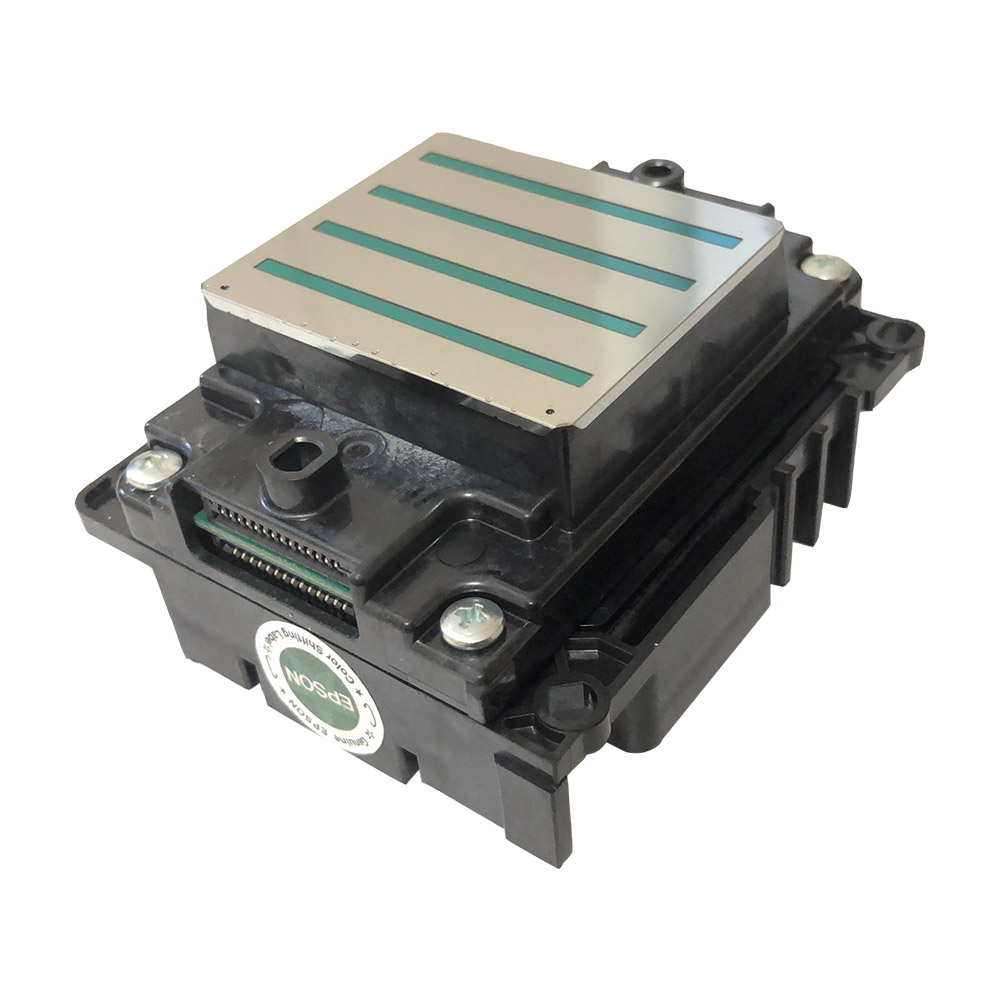

Epson I3200-U1 UV Printhead (I3200-U1 HD) for UV and Solvent Inks
The Epson I3200-U1 HD is a cost-effective 1.33 inch-wide providing higher nozzle resolution than the existing I3200-U1 with up to 1200 nozzles per inch. This printhead is suitable for UV and solvent inks.
Specifications:
Ink Type: UV and solvent inks
Type: PrecisionCore MicroTFP printhead
Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
Weight: 78g
Number of nozzle: 3200
Nozzle pitch/nozzle row: 1/300 inch
Nozzle rows: 8 rows
Nozzle Resolution: 300 npi/row, 600 npi/2 rows, 1200 npi/4 rows
Max. number of colour inks: 8 colours
Effective print width: 33.8 mm (1.33 inches)
Droplet ejection performance:
Binary: 6 plat 43.2 kHz
3 levels grey scale: 6.3, 12.3 pl at 21.6 kHz
4 levels grey scale: 3.8, 6.1, 9.4 pl at 21.6 kHz
Viscosity range: 2.2-3.8 mPa·s
Country of origin: Japan
The Epson I3200-U1 HD is a cost-effective 1.33 inch-wide providing higher nozzle resolution than the existing I3200-U1 with up to 1200 nozzles per inch. This printhead is suitable for UV and solvent inks.
Specifications:
Ink Type: UV and solvent inks
Type: PrecisionCore MicroTFP printhead
Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
Weight: 78g
Number of nozzle: 3200
Nozzle pitch/nozzle row: 1/300 inch
Nozzle rows: 8 rows
Nozzle Resolution: 300 npi/row, 600 npi/2 rows, 1200 npi/4 rows
Max. number of colour inks: 8 colours
Effective print width: 33.8 mm (1.33 inches)
Droplet ejection performance:
Binary: 6 plat 43.2 kHz
3 levels grey scale: 6.3, 12.3 pl at 21.6 kHz
4 levels grey scale: 3.8, 6.1, 9.4 pl at 21.6 kHz
Viscosity range: 2.2-3.8 mPa·s
Country of origin: Japan
